Tutorial : ElegantRun - Tracking¶
[1]:
import pandas as pd
import numpy as np
from pyelegantsdds.elegantrun import ElegantRun
from pyelegantsdds.sdds import SDDS
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
%matplotlib notebook
from IPython.display import Image
[2]:
# path to singularity container with parallel elegant installed
sif = "PATH_TO_SIF"
Lattices used in the tutorial¶
FODO¶
[3]:
### lattice element definitions
elements ={
"QF": {"type" : "KQUAD", "L": 0.342, "K1": 0.4900, "N_KICKS": 16},
"QD": {"type" : "KQUAD", "L": 0.668, "K1": -0.4999, "N_KICKS": 16},
"D": {"type" : "DRIF" , "L": 3.5805},
"W1": {"type" : "WATCH", "filename":"\"%s-%03ld.w1\"","mode": "coordinates"}
}
FODOstr = "! FODO cell.\n\n"
stringlist = ["{:6}: {}".format(k,", ".join([
"{}={:15.12f}".format(kk,vv)
if not isinstance(vv,str)
else "{}={}".format(kk,vv)
if kk!="type"
else "{}".format(vv)
for kk,vv in v.items()]))
for k,v in elements.items()]
line = ["W1","QF","D","QD","D","QF"]
linestr = "{:6}: LINE=({})".format("FODO",",".join(line))
FODOstr += "\n".join(stringlist)
FODOstr += "\n\n"
FODOstr += linestr
print(FODOstr)
with open("FODO.lte","w") as f:
f.write(FODOstr)
! FODO cell.
QF : KQUAD, L= 0.342000000000, K1= 0.490000000000, N_KICKS=16.000000000000
QD : KQUAD, L= 0.668000000000, K1=-0.499900000000, N_KICKS=16.000000000000
D : DRIF, L= 3.580500000000
W1 : WATCH, filename="%s-%03ld.w1", mode=coordinates
FODO : LINE=(W1,QF,D,QD,D,QF)
parTrack from Elegant examples¶
[4]:
# Lattice parTrack from Elegant examples
latstr = """
l1a: DRIF, L=0.2
l1b: DRIF, L=1.531675
lqb: DRIF, L=0.24
l2: DRIF, L=0.08
l3: DRIF, L=1.47
l3a: DRIF, L=0.568095770758662
l3b: DRIF, L=0.551904229241338
! LHK is half the effective length of a kicker
lhk: DRIF, L=0.175
l34a: DRIF, L=0.811087
l34b: DRIF, L=0.308913
l4: DRIF, L=0.08
l5: DRIF, L=0.325
b1: CSBEND, L=0.8, angle=-0.785398163397, e1=-0.445, e2=-0.445, k2=0.1375, k3=100, hgap=0.0225, fint=0.41, integration_order=4, n_kicks=20, nonlinear=1
b2: CSBEND, L=0.8, angle=-0.785398163397, e1=-0.445, e2=-0.445, k2=0.1375, k3=100, hgap=0.0225, fint=0.41, integration_order=4, n_kicks=20, nonlinear=1
q1: KQUAD, L=0.23, k1=1.786022448154, n_kicks=10
q2: KQUAD, L=0.23, k1=2.295915530046, n_kicks=10
q3: KQUAD, l=0.23, k1=0.0
q4: KQUAD, l=0.23, k1=2.270174600496, n_kicks=10
s1h: SEXT, l=0.1, k2=0.0
! vertical chromaticity sextupole plus vertical steering magnet
sdh: KSEXT, l=0.1, k2=5.95873739969822, n_kicks=4
! horizontal chromaticity sextupole plus horizontal steering magnet
sfh: ksextupole, l=0.1, k2=-1.65546424863732, n_kicks=4
s1: line=(s1h,s1h)
sd: line=(sdh,sdh)
sf: line=(sfh,sfh)
! markers for the septum center and the center of the RF straight
msept: marker
mrf: marker
! quadrant 1, less half of SF
quadr1: line=(l1a,l1b,s1,l2,q1,lqb,b1,lqb,q2,l3a,lhk,lhk,l3b,sd,l4,q3,lqb,b2,lqb,q4,l5)
! quadrant 2, less half of SF
quadr2: line=(l1a,l1b,s1,l2,q1,lqb,b1,lqb,q2,l3a,lhk,lhk,l3b,sd,l4,q3,lqb,b2,lqb,q4,l5)
! quadrant 3, less half of SF
quadr3: line=(l1a,l1b,s1,l2,q1,lqb,b1,lqb,q2,l3,sd,l4,q3,lqb,b2,lqb,q4,l5)
! quadrant 4, less half of SF
quadr4: line=(l1a,l1b,s1,l2,q1,lqb,b1,lqb,q2,l34a,lhk,lhk,l34b,sd,l4,q3,lqb,b2,lqb,q4,l5)
half: line=(quadr2,sf,-quadr2)
ap: rcol,x_max=0.04,y_max=0.01
par: line=(2*half,ap)
return
""".upper()
with open('parTrack.lte','w') as f:
f.write(latstr)
Tracking¶
Single particle tracking simple¶
[5]:
# set lattice for the rest of the tutorial
lattice = "FODO.lte"
# create instance of the class
er = ElegantRun(sif,lattice, parallel=True, use_beamline="FODO", energy=1700.00)
# run tracking of single particle with given init coord.
er.simple_single_particle_track(n_passes=2**8, coord=np.array([1e-5,0,0,0,0]))
1700.0
Shape: (1, 6) - Number of paritcles: 1
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
[6]:
# quick plot
sddsp = SDDS(sif,"temp-001.w1",0)
sddsp.sddsplot_base(
columnNames="x,xp",
graph="symb,type=1,fill",
device='png',
output="FODO_single_particle.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.w1 -columnNames=x,xp -graph=symb,type=1,fill -device=png -output=FODO_single_particle.png
[7]:
Image(filename='FODO_single_particle.png')
[7]:
Multi-particle Tracking¶
Before tracking we need to decide on which initial distribution to track. The package offers several possibilities to generate initial distributions.
Hypercube¶
[8]:
# generate rectangular coordinate input file - auto
# if pcentralmev is not given the energy value in er.kwargs will be used
er.generate_sdds_particle_inputfile(grid_type='rectangular', p_min=1e-6, p_max=1e-2,
pcentralmev=er.kwargs.get('energy'),
NPOINTS=7
)
1700.0
Shape: (16807, 6) - Number of paritcles: 16807
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
Let us have a look at a 3D cut of the initial distribution.
[9]:
sddsp = SDDS(sif,"temp_particles_input.bin",0)
df = sddsp.readParticleData()
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax.scatter(df.x,df.xp,df.y,s=1)
# labels
ax.set_xlabel(r'$x$')
ax.set_ylabel(r'$p_x$')
ax.set_zlabel(r'$y$')
# padding
ax.xaxis.labelpad=15
ax.yaxis.labelpad=15
ax.zaxis.labelpad=15
plt.tight_layout()
plt.show()
Warning - auto filename set
Changed from temp_particles_input.bin to temp_particles_input.bin.txt
Warning - auto filetype set
Changed from 0 to 1
[10]:
# track
er.track_simple(n_passes=2**6)
[11]:
# quick plot
sddsp = SDDS(sif,"temp-001.w1",0)
sddsp.sddsplot_base(
columnNames="x,xp",
graph="symb,vary=subtype,fill",
order="spectral",
split="columnBin=particleID",
device='png',
output="FODO_multi_particle_rectangular.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.w1 -columnNames=x,xp -graph=symb,vary=subtype,fill -order=spectral -split=columnBin=particleID -device=png -output=FODO_multi_particle_rectangular.png
[12]:
Image(filename="FODO_multi_particle_rectangular.png")
[12]:
Higher dim ball¶
[13]:
# generate rectangular coordinate input file - auto
# if pcentralmev is not given the energy value in er.kwargs will be used
er = ElegantRun(sif,lattice, parallel=True, use_beamline="FODO", energy=1700.00)
er.generate_sdds_particle_inputfile(grid_type='spherical',
dim=6,
rmin=1e-6,
rmax=1e-4,
rsteps=5,
phisteps=10,
half=False, # True gives full first quadrant
pcentralmev=er.kwargs.get('energy'),
)
1700.0
Shape: (5000, 6) - Number of paritcles: 5000
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
[14]:
sddsp = SDDS(sif,"temp_particles_input.bin",0)
df = sddsp.readParticleData()
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax.xaxis.labelpad=15
ax.yaxis.labelpad=15
ax.zaxis.labelpad=15
ax.scatter(df.x,df.xp,df.y,s=1)
ax.set_xlabel(r'$x$')
ax.set_ylabel(r'$p_x$')
ax.set_zlabel(r'$y$')
plt.tight_layout()
plt.show()
Warning - auto filename set
Changed from temp_particles_input.bin to temp_particles_input.bin.txt
Warning - auto filetype set
Changed from 0 to 1
[15]:
# generate rectangular coordinate input file - auto
# if pcentralmev is not given the energy value in er.kwargs will be used
er = ElegantRun(sif,lattice, parallel=True, use_beamline="FODO", energy=1700.00)
er.generate_sdds_particle_inputfile(grid_type='spherical',
dim=6,
rmin=1e-6,
rmax=1e-4,
rsteps=5,
phisteps=10,
half=True, # False gives full spheres
pcentralmev=er.kwargs.get('energy'),
)
1700.0
Shape: (5000, 6) - Number of paritcles: 5000
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
[16]:
sddsp = SDDS(sif,"temp_particles_input.bin",0)
df = sddsp.readParticleData()
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax.xaxis.labelpad=15
ax.yaxis.labelpad=15
ax.zaxis.labelpad=15
ax.scatter(df.x,df.xp,df.y,s=1)
ax.set_xlabel(r'$x$')
ax.set_ylabel(r'$p_x$')
ax.set_zlabel(r'$y$')
plt.tight_layout()
plt.show()
Warning - auto filename set
Changed from temp_particles_input.bin to temp_particles_input.bin.txt
Warning - auto filetype set
Changed from 0 to 1
[17]:
# track
er.track_simple(n_passes=2)
[18]:
sddsp = SDDS(sif,"temp-001.w1",0)
df = sddsp.readParticleData()
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax.scatter(df.loc[df.Turn==1].x,df.loc[df.Turn==1].xp,df.loc[df.Turn==1].y,s=1)
ax.scatter(df.loc[df.Turn==2].x,df.loc[df.Turn==2].xp,df.loc[df.Turn==2].y,s=1,c='red')
ax.xaxis.labelpad=15
ax.yaxis.labelpad=15
ax.zaxis.labelpad=15
ax.set_xlabel(r'$x$')
ax.set_ylabel(r'$p_x$')
ax.set_zlabel(r'$y$')
plt.title('Sphere (half) after 1 turn')
plt.show()
Warning - auto filename set
Changed from temp-001.w1 to temp-001.w1.txt
Warning - auto filetype set
Changed from 0 to 1
Manual distribution¶
[19]:
# load elegant similator
er = ElegantRun(sif,lattice, parallel=True, use_beamline="FODO", energy=1700.00)
# twiss
twidata, twipar = er.findtwiss()
twipar.nux, twipar.nuy, twipar['dnux/dp'], twipar['dnuy/dp']
[19]:
(0.2357264, 0.2343325, -0.2898536, -0.2892501)
[20]:
# off - momentum
delta = 1.5e-3 * twipar.pCentral
# initial coordinate grid for tracking
man_ranges= {
0 : np.array([0,1e-6,1e-5,1e-4,1e-3,1e-2,1e-1,1,1.1,1.2,1.3,1.4,1.5,1.6,1.7,1.8,1.9,1.95,1.975,1.9875,2,2.1,2.2,2.3]),
1 : [0.05],
2 : 0,
3 : 0,
4 : 0,
5 : twipar.pCentral + delta
}
# generate coordinate input file
er.generate_sdds_particle_inputfile(man_ranges=man_ranges)
# track
er.track_simple(n_passes=400)
1700.0
Shape: (24, 6) - Number of paritcles: 24
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
[21]:

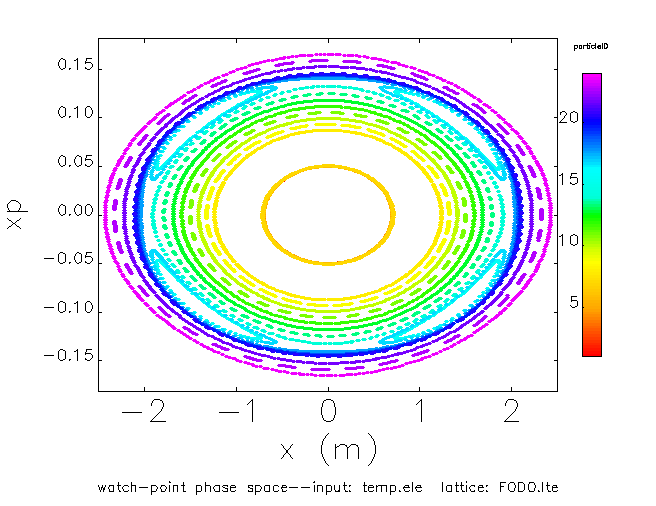

# quick plot
sddsp = SDDS(sif,"temp-001.w1",0)
# uncomment to save to file
sddsp.sddsplot_base(
columnNames="x,xp",
# file="temp-001.w1",
scale="-2.5,2.5,0,0",
graph="symb,vary=subtype,fill",
order="spectral",
split="columnBin=particleID",
device="png",
output="FODO_island.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.w1 -columnNames=x,xp -scale=-2.5,2.5,0,0 -graph=symb,vary=subtype,fill -order=spectral -split=columnBin=particleID -device=png -output=FODO_island.png
[22]:
Image(filename="FODO_island.png")
[22]:
Advanced Tracking¶
FMA¶
[23]:
lattice = 'parTrack.lte'
er = ElegantRun(sif,lattice, parallel=True, use_beamline="par", energy=880.00)
er.fma(xmin=-0.05,xmax=0.05,ymin=0,ymax=0.02,nx=51,ny=51, n_passes=256)
[24]:
sddsp = SDDS(sif,'temp.fma',0)
sddsp.sddsplot_fma(
# file2="temp.fma",
device='png',
output="partrack_fma_diffusionrate.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp.fma -col=x,y -graph=sym,vary=subtype,fill,scale=2,fill -order=spectral -split=column=diffusionRate -device=png -output=partrack_fma_diffusionrate.png
[25]:
Image(filename="partrack_fma_diffusionrate.png")
[25]:
[26]:
sddsp.sddsplot_tunediagram(scale="0,1,0,1", device='png',output="partrack_tune.png" )
Executing :
/home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsresdiag resdiag.sdds
Executing :
/home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot -columnNames=nux,nuy temp.fma -scale=0,1,0,1 -graph=sym,fill,vary=subtype -order=spect -split=col=x -col=nux,nuy resdiag.sdds -sever -device=png -output=partrack_tune.png
[27]:
Image(filename="partrack_tune.png")
[27]:
DA¶
[28]:
er = ElegantRun(sif,lattice, parallel=True, use_beamline="par", energy=880)
# parallel only supports n-line
er.dynap(n_lines=51)
[29]:
sddsp = SDDS(sif,"temp.aper",0)
sddsp.sddsplot_base(col="x,y",file1=sddsp.filename, device='png',output="partrack_aper.png")
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp.aper -col=x,y temp.aper -device=png -output=partrack_aper.png
[30]:
Image(filename="partrack_aper.png")
[30]:
Vary Element with input table¶
Mode: Row¶
[31]:
# create the input table for vary element
datasetdc = {
"Q1" : [1.786022448154-0.01,1.786022448154+0.01],
"Q2" : [2.295915530046-0.01,2.295915530046+0.01],
}
# create simulation object
er = ElegantRun(sif,lattice, parallel=True, use_beamline="par", energy=880.00)
# generate particle grid for tracking
er.generate_sdds_particle_inputfile(grid_type='rectangular', p_min=1e-6, p_max=1e-2,
pcentralmev=er.kwargs.get('energy'),
NPOINTS=3
)
# Track with vary - using mode row -> number of combinations is equal to the number of rows
er.track_vary(varydict=datasetdc,varyitemlist=['k1',"k1"],n_passes=2**8, add_watch_start=True, mode='row')
# laod the data
sdds = SDDS(sif, "temp-001.wq",0)
sdds.process_scan()
data = sdds.readParticleData()
data.head()
880.0
Shape: (243, 6) - Number of paritcles: 243
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
Executing :
/home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsprocess -define=column,step,Step temp-001.wq temp-001_processed.wq
Warning - auto filename set
Changed from temp-001.wq to temp-001_processed.wq
Warning - auto filename set
Changed from temp-001_processed.wq to temp-001_processed.wq.txt
Warning - auto filetype set
Changed from 0 to 1
[31]:
| x | xp | y | yp | t | p | dt | particleID | step | Turn | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00000 | 1722.116751 | 0.00000 | 1 | 1.0 | 1 |
| 1 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00005 | 1722.116751 | 0.00005 | 2 | 1.0 | 1 |
| 2 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00010 | 1722.116751 | 0.00010 | 3 | 1.0 | 1 |
| 3 | 0.0 | 0.0 | 0.0 | 0.00005 | 0.00000 | 1722.116751 | 0.00000 | 4 | 1.0 | 1 |
| 4 | 0.0 | 0.0 | 0.0 | 0.00005 | 0.00005 | 1722.116751 | 0.00005 | 5 | 1.0 | 1 |
[32]:
# inspect input table file
sdds = SDDS(sif, "temp.sdds",0)
sdds.getColumnValues()
[32]:
| Q1 | Q2 | |
|---|---|---|
| 0 | 1.776022 | 2.285916 |
| 1 | 1.796022 | 2.305916 |
[33]:
# quick plot
sddsp = SDDS(sif,"temp-001.wq",0)
sddsp.sddsplot_base(
graph="dot,type=2",
groupby='page',
layout='2,1',
split='parameterChange=Step,width=1,start=0',
sep='page',
columnNames="x,xp",
legend='param=Step',
device='png',
output="partrack_vary_rect_mode_row.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -graph=dot,type=2 -groupby=page -layout=2,1 -split=parameterChange=Step,width=1,start=0 -sep=page -columnNames=x,xp -legend=param=Step -device=png -output=partrack_vary_rect_mode_row.png
[34]:
Image(filename='partrack_vary_rect_mode_row.png')
[34]:
[35]:
nsteps = int(data.step.max())
fig = plt.figure(constrained_layout=True)
gs= fig.add_gridspec(nsteps//2+nsteps%2, 2)
for i in [1.0*n for n in range(1,nsteps+1)]:
ax = fig.add_subplot(gs[int(i-1)//2,int(i-1)%2])
ax.xaxis.set_major_locator(plt.MaxNLocator(3))
for name, group in data.loc[data.step==i].groupby("particleID"):
ax.scatter(group["x"],group["xp"],s=1, label=name)
plt.show()
Mode: table¶
[36]:
# create the input table for vary element
datasetdc = {
"Q1" : [1.786022448154-0.01,1.786022448154+0.01],
"Q2" : [2.295915530046-0.01,2.295915530046+0.01],
}
# create simulation object
er = ElegantRun(sif,lattice, parallel=True, use_beamline="par", energy=880.00)
# generate particle grid for tracking
er.generate_sdds_particle_inputfile(grid_type='rectangular', p_min=1e-6, p_max=1e-2,
pcentralmev=er.kwargs.get('energy'),
NPOINTS=3
)
# Track with vary - using mode row -> number of combinations is equal to the number of rows
er.track_vary(varydict=datasetdc,varyitemlist=['k1',"k1"],n_passes=2**8, add_watch_start=True, mode='table')
# laod the data
sdds = SDDS(sif, "temp-001.wq",0)
sdds.process_scan()
data = sdds.readParticleData()
data.head()
880.0
Shape: (243, 6) - Number of paritcles: 243
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
Executing :
/home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsprocess -define=column,step,Step temp-001.wq temp-001_processed.wq
Warning - auto filename set
Changed from temp-001.wq to temp-001_processed.wq
Warning - auto filename set
Changed from temp-001_processed.wq to temp-001_processed.wq.txt
Warning - auto filetype set
Changed from 0 to 1
[36]:
| x | xp | y | yp | t | p | dt | particleID | step | Turn | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00000 | 1722.116751 | 0.00000 | 1 | 1.0 | 1 |
| 1 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00005 | 1722.116751 | 0.00005 | 2 | 1.0 | 1 |
| 2 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00010 | 1722.116751 | 0.00010 | 3 | 1.0 | 1 |
| 3 | 0.0 | 0.0 | 0.0 | 0.00005 | 0.00000 | 1722.116751 | 0.00000 | 4 | 1.0 | 1 |
| 4 | 0.0 | 0.0 | 0.0 | 0.00005 | 0.00005 | 1722.116751 | 0.00005 | 5 | 1.0 | 1 |
[37]:
# inspect input table file
sdds = SDDS(sif, "temp.sdds",0)
sdds.getColumnValues()
[37]:
| Q1 | Q2 | |
|---|---|---|
| 0 | 1.776022 | 2.285916 |
| 1 | 1.796022 | 2.305916 |
[38]:

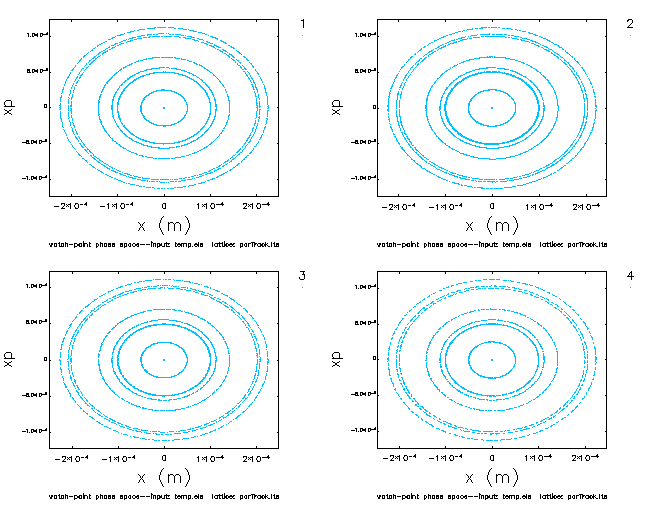

# quick plot
sddsp = SDDS(sif,"temp-001.wq",0)
sddsp.sddsplot_base(
graph="dot,type=2",
groupby='page',
layout='2,2',
split='parameterChange=Step,width=1,start=0',
sep='page',
columnNames="x,xp",
legend='param=Step',
device='png',
output="partrack_vary_rect_mode_table.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -graph=dot,type=2 -groupby=page -layout=2,2 -split=parameterChange=Step,width=1,start=0 -sep=page -columnNames=x,xp -legend=param=Step -device=png -output=partrack_vary_rect_mode_table.png
[39]:
Image(filename="partrack_vary_rect_mode_table.png")
[39]:
[40]:
nsteps = int(data.step.max())
fig = plt.figure(constrained_layout=True)
gs= fig.add_gridspec(nsteps//2+nsteps%2, 2)
for i in [1.0*n for n in range(1,nsteps+1)]:
ax = fig.add_subplot(gs[int(i-1)//2,int(i-1)%2])
ax.xaxis.set_major_locator(plt.MaxNLocator(3))
for name, group in data.loc[data.step==i].groupby("particleID"):
ax.scatter(group["x"],group["xp"],s=1, label=name)
plt.show()
Vary Elment with vary commands¶
Mode: row¶
[41]:
# create the input table for vary element
varyset = [
{'name': "Q1", 'item':'K1', 'initial': 1.786022448154-0.01,'final':1.786022448154+0.01, 'index_limit': 2},
{'name': "Q2", 'item':'K1', 'initial': 2.295915530046-0.01,'final':2.295915530046+0.01, 'index_limit': 2}
]
# create simulation object
er = ElegantRun(sif,lattice, parallel=True, use_beamline="par", energy=880.00)
# generate particle grid for tracking
er.generate_sdds_particle_inputfile(grid_type='rectangular', p_min=1e-6, p_max=1e-2,
pcentralmev=er.kwargs.get('energy'),
NPOINTS=3
)
er.table_scan(varyset,mode='row',add_watch_start=True)
# laod the data
sdds = SDDS(sif, "temp-001.wq",0)
sdds.process_scan()
data = sdds.readParticleData()
data.head()
880.0
Shape: (243, 6) - Number of paritcles: 243
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
Executing :
/home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsprocess -define=column,step,Step temp-001.wq temp-001_processed.wq
Warning - auto filename set
Changed from temp-001.wq to temp-001_processed.wq
Warning - auto filename set
Changed from temp-001_processed.wq to temp-001_processed.wq.txt
Warning - auto filetype set
Changed from 0 to 1
[41]:
| x | xp | y | yp | t | p | dt | particleID | step | Turn | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00000 | 1722.116751 | 0.00000 | 1 | 1.0 | 1 |
| 1 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00005 | 1722.116751 | 0.00005 | 2 | 1.0 | 1 |
| 2 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00010 | 1722.116751 | 0.00010 | 3 | 1.0 | 1 |
| 3 | 0.0 | 0.0 | 0.0 | 0.00005 | 0.00000 | 1722.116751 | 0.00000 | 4 | 1.0 | 1 |
| 4 | 0.0 | 0.0 | 0.0 | 0.00005 | 0.00005 | 1722.116751 | 0.00005 | 5 | 1.0 | 1 |
[42]:
# quick plot
sddsp = SDDS(sif,"temp-001.wq",0)
sddsp.sddsplot_base(
graph="dot,type=2",
groupby='page',
layout='2,2',
split='parameterChange=Step,width=1,start=0',
sep='page',
columnNames="x,xp",
legend='param=Step',
device='png',
output="partrack_varycommand_rect_mode_row_.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -graph=dot,type=2 -groupby=page -layout=2,2 -split=parameterChange=Step,width=1,start=0 -sep=page -columnNames=x,xp -legend=param=Step -device=png -output=partrack_varycommand_rect_mode_row_.png
[43]:
Image(filename="partrack_varycommand_rect_mode_row_.png")
[43]:
[44]:
nsteps = int(data.step.max())
fig = plt.figure(constrained_layout=True)
gs= fig.add_gridspec(nsteps//2+nsteps%2, 2)
for i in [1.0*n for n in range(1,nsteps+1)]:
ax = fig.add_subplot(gs[int(i-1)//2,int(i-1)%2])
ax.xaxis.set_major_locator(plt.MaxNLocator(3))
for name, group in data.loc[data.step==i].groupby("particleID"):
ax.scatter(group["x"],group["xp"],s=1, label=name)
plt.show()
Mode: table¶
[45]:
# create the input table for vary element
varyset = [
{'name': "Q1", 'item':'K1', 'initial': 1.786022448154-0.01,'final':1.786022448154+0.01, 'index_limit': 2},
{'name': "Q2", 'item':'K1', 'initial': 2.295915530046-0.01,'final':2.295915530046+0.01, 'index_limit': 2}
]
# create simulation object
er = ElegantRun(sif,lattice, parallel=True, use_beamline="par", energy=880.00)
# generate particle grid for tracking
er.generate_sdds_particle_inputfile(grid_type='rectangular', p_min=1e-6, p_max=1e-2,
pcentralmev=er.kwargs.get('energy'),
NPOINTS=3
)
er.table_scan(varyset,mode='table',add_watch_start=True)
# laod the data
sdds = SDDS(sif, "temp-001.wq",0)
sdds.process_scan()
data = sdds.readParticleData()
data.head()
880.0
Shape: (243, 6) - Number of paritcles: 243
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
Executing :
/home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsprocess -define=column,step,Step temp-001.wq temp-001_processed.wq
Warning - auto filename set
Changed from temp-001.wq to temp-001_processed.wq
Warning - auto filename set
Changed from temp-001_processed.wq to temp-001_processed.wq.txt
Warning - auto filetype set
Changed from 0 to 1
[45]:
| x | xp | y | yp | t | p | dt | particleID | step | Turn | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00000 | 1722.116751 | 0.00000 | 1 | 1.0 | 1 |
| 1 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00005 | 1722.116751 | 0.00005 | 2 | 1.0 | 1 |
| 2 | 0.0 | 0.0 | 0.0 | 0.00000 | 0.00010 | 1722.116751 | 0.00010 | 3 | 1.0 | 1 |
| 3 | 0.0 | 0.0 | 0.0 | 0.00005 | 0.00000 | 1722.116751 | 0.00000 | 4 | 1.0 | 1 |
| 4 | 0.0 | 0.0 | 0.0 | 0.00005 | 0.00005 | 1722.116751 | 0.00005 | 5 | 1.0 | 1 |
[46]:
# quick plot
sddsp = SDDS(sif,"temp-001.wq",0)
sddsp.sddsplot_base(
graph="dot,type=2",
groupby='page',
layout='2,2',
split='parameterChange=Step,width=1,start=0',
sep='page',
columnNames="x,xp",
legend='param=Step',
device='png',
output="partrack_varycommand_rect_mode_table_.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -graph=dot,type=2 -groupby=page -layout=2,2 -split=parameterChange=Step,width=1,start=0 -sep=page -columnNames=x,xp -legend=param=Step -device=png -output=partrack_varycommand_rect_mode_table_.png
[47]:
Image(filename="partrack_varycommand_rect_mode_table_.png")
[47]:
Radiation and RF effects¶
[48]:
# use lattice from file
lattice = 'bii_simple.lte'
# run twiss to get gamma0 for generating particle input
er = ElegantRun(sif,lattice, parallel=True, use_beamline="ring", energy=1700.00)
twiss, twipar = er.findtwiss()
# on/off - momentum
gamma0 = twipar.pCentral
# initial coordinate grid for tracking
man_ranges= {
0 : np.array([0,1e-6,1e-5,1e-4]),
1 : [0],
2 : 0,
3 : 0,
4 : 0,
5 : gamma0
}
# generate coordinate input file
er = ElegantRun(sif,lattice, parallel=True, use_beamline="ring", energy=1700.00)
er.generate_sdds_particle_inputfile(man_ranges=man_ranges)
er.track_simple(rad=False, rf=False, add_watch_start=True, total_voltage=1.5e6)
1700.0
Shape: (4, 6) - Number of paritcles: 4
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
[49]:
# quick plot
sddsp = SDDS(sif,"temp-001.wq",0)
sddsp.sddsplot_base(
columnNames="dt,p",
graph="symb,vary=subtype,fill",
order="spectral",
split="columnBin=particleID",
device="png",
output="bii_no_rad_no_rf_long.png"
)
sddsp.sddsplot_base(
columnNames="x,xp",
graph="symb,vary=subtype,fill",
order="spectral",
split="columnBin=particleID",
device="png",
output="bii_no_rad_no_rf_long_xpx.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -columnNames=dt,p -graph=symb,vary=subtype,fill -order=spectral -split=columnBin=particleID -device=png -output=bii_no_rad_no_rf_long.png
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -columnNames=x,xp -graph=symb,vary=subtype,fill -order=spectral -split=columnBin=particleID -device=png -output=bii_no_rad_no_rf_long_xpx.png
[50]:
# generate coordinate input file
er = ElegantRun(sif,lattice, parallel=True, use_beamline="ring", energy=1700.00)
er.generate_sdds_particle_inputfile(man_ranges=man_ranges)
er.track_simple(rad=True, rf=False, add_watch_start=True, total_voltage=1.5e6)
1700.0
Shape: (4, 6) - Number of paritcles: 4
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
[51]:
# quick plot
sddsp = SDDS(sif,"temp-001.wq",0)
sddsp.sddsplot_base(
columnNames="dt,p",
graph="symb,vary=subtype,fill",
order="spectral",
split="columnBin=particleID",
device="png",
output="bii_rad_no_rf_long.png"
)
sddsp.sddsplot_base(
columnNames="x,xp",
graph="symb,vary=subtype,fill",
order="spectral",
split="columnBin=particleID",
device="png",
output="bii_rad_no_rf_long_xpx.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -columnNames=dt,p -graph=symb,vary=subtype,fill -order=spectral -split=columnBin=particleID -device=png -output=bii_rad_no_rf_long.png
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -columnNames=x,xp -graph=symb,vary=subtype,fill -order=spectral -split=columnBin=particleID -device=png -output=bii_rad_no_rf_long_xpx.png
[52]:
# generate coordinate input file
er = ElegantRun(sif,lattice, parallel=True, use_beamline="ring", energy=1700.00)
er.generate_sdds_particle_inputfile(man_ranges=man_ranges)
er.track_simple(rad=True, rf=True, add_watch_start=True, total_voltage=1.5e6)
1700.0
Shape: (4, 6) - Number of paritcles: 4
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif plaindata2sdds temp_plain_particles.dat temp_particles_input.bin -inputMode=ascii -outputMode=binary "-separator= " -column=x,double,units=m -column=xp,double -column=y,double,units=m -column=yp,double -column=t,double,units=s -column=p,double,units="m$be$nc" -columns=particleID,long -noRowCount
[53]:
# quick plot
sddsp = SDDS(sif,"temp-001.wq",0)
sddsp.sddsplot_base(
columnNames="dt,p",
graph="symb,vary=subtype,fill",
order="spectral",
split="columnBin=particleID",
device="png",
output="bii_rad_rf_long.png"
)
sddsp.sddsplot_base(
columnNames="x,xp",
graph="symb,vary=subtype,fill",
order="spectral",
split="columnBin=particleID",
device="png",
output="bii_rad_rf_long_xpx.png"
)
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -columnNames=dt,p -graph=symb,vary=subtype,fill -order=spectral -split=columnBin=particleID -device=png -output=bii_rad_rf_long.png
Running command /home/mti/gitlab-hzb/containers/bin/pelegant.sif sddsplot temp-001.wq -columnNames=x,xp -graph=symb,vary=subtype,fill -order=spectral -split=columnBin=particleID -device=png -output=bii_rad_rf_long_xpx.png
[54]:
Image('bii_no_rad_no_rf_long.png')
[54]:
[55]:
Image('bii_no_rad_no_rf_long_xpx.png')
[55]:
[56]:
Image('bii_rad_no_rf_long.png')
[56]:
[57]:
Image('bii_rad_no_rf_long_xpx.png')
[57]:
[58]:
Image(filename="bii_rad_rf_long.png")
[58]:
[59]:
Image(filename="bii_rad_rf_long_xpx.png")
[59]:
